Zero fine sand loss sand washing machine | Moisture content ≤15% Fine sand recovery ≥95% - CATHAY

The integrated machine for sand washing,dehydration and recycling is composed of dehydration screens,wheel buckets,cyclones,cleaning boxes,reducers,motors,vibration motors,and other components. The sand water mixture enters the wheel bucket screen of the sand washing machine for filtration and screening;Falling into the dehydration screen for dehydration treatment,a large amount of water in the sand is removed.The sewage containing fine sand is concentrated through a cyclone and then fed into the dehydration screen.It is a new type of fine sand recovery device that integrates sand washing,dehydration,and recovery.
product introduction
Product Overview
CATHAY sand washing and dehydration machine integrates three functions: washing + dehydration + fine sand recovery. A single machine completes the process of three traditional equipment. The washing rate is ≥99%, the moisture content of finished sand is ≤15%, the fine sand recovery rate is ≥95%, the processing capacity is 50-500 tons/hour, the land occupation is reduced by 60%, and the investment cost is reduced by 45%.
Core advantages
✅ Three effects in one
- Spiral powerful sand washing + high-frequency dewatering screen + cyclone recovery system
- Eliminate sedimentation tank, zero sewage discharge meets standards
✅ High quality control of sand materials
- Mud content ≤0.8% (national standard ≤3%)
- Fineness modulus 2.3-3.0 adjustable
✅ Energy saving and durability
- Water consumption per ton of sand 1.5m³ (traditional line 3-5m³)
- Blade lining NM450 wear-resistant steel, life ≥18 months
✅ Intelligent operation and maintenance
- PLC one-button start and stop + mobile phone remote monitoring
- Overload automatic protection
Technical parameters (WDS-200 standard type)
| Module | Parameters |
| Sand washing capacity | 200t/h |
| Dewatering screen | 1800×4500mm |
| Fine sand recovery | Recovery rate ≥95% |
| Total power | 45kW |
| Moisture content | ≤15% |
| Machine weight | 12.8t |
Comparison with traditional production lines
| Indicators | CATHAY integrated machine | Traditional three-unit machine |
| Area | 120㎡ | 500㎡ |
| Installed power | 110kW | 180kW |
| Operators | 1 person | 4 people |
| Investment cost | ↓45% | - |
Five major application scenarios
✔ Sand and gravel aggregate plant: integrated machine-made sand washing and dehydration
✔ River sand mining: ship-mounted mobile operation (rust-proof version)
✔ Mine tailings: fine particle resource recovery
✔ Construction waste: recycled aggregate washing and purification
✔ High-standard concrete: fine sand production line (including stone powder control)
叶轮直径(mm) Diameter
筛板规格(mm) Sieve plate
处理水量(m³/h) Capacity
出砂量(t/h) 总功率(kw) Capacity Power
外形尺寸(mm) Overall dimension
Overall dimension
Sand washing and dewatering machine
Previous Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Next CATHAY Mud and Stone Separator | Powerful separation of high clay ores, processing capacity 500t/h
CATHAY Mud and Stone Separator | Powerful separation of high clay ores, processing capacity 500t/h
Subject : Zero fine sand loss sand washing machine | Moisture content ≤15% Fine sand recovery ≥95% - CATHAY
Mining feeder equipment
Vibrating screen
Ore dressing machine
Mining handling equipment

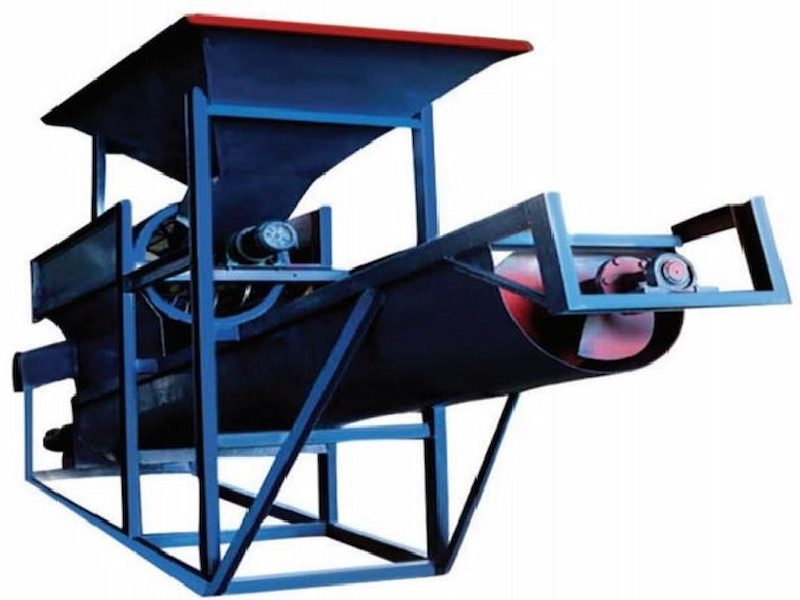

CATHAY SWS-200 Sand Screening Machine | Processing capacity 200t/h including fine sand recovery learn more

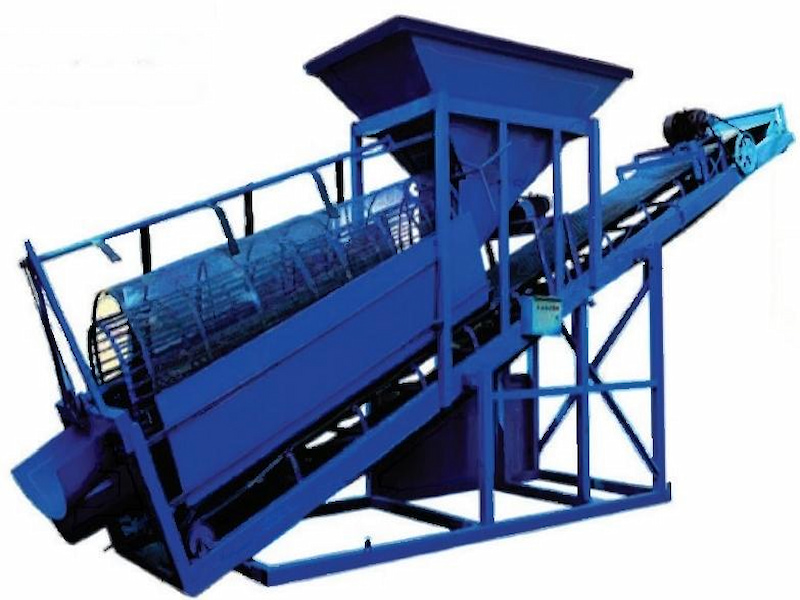

All-in-One Sand Washing Plant - Screening & Dewatering System | CATHAY learn more

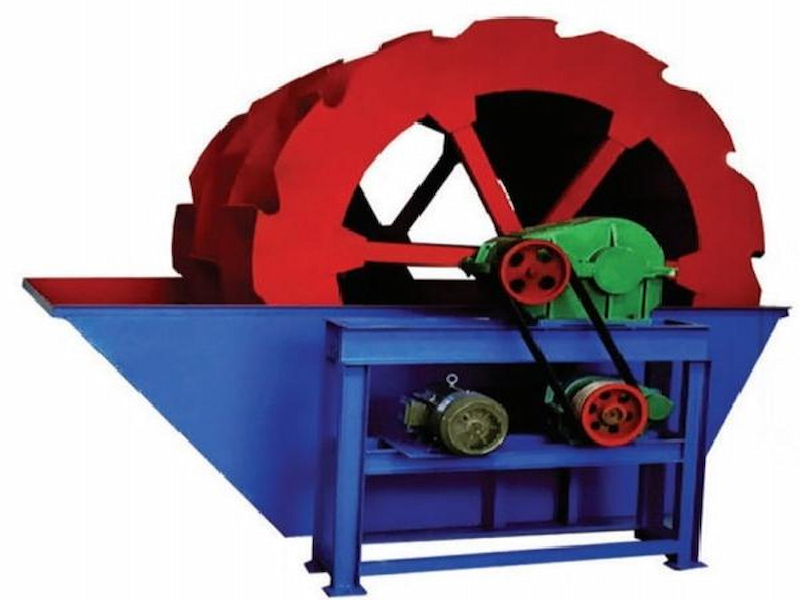

CATHAY bucket wheel sand washing machine | Sand and gravel aggregate cleaning rate 99% Support customization learn more

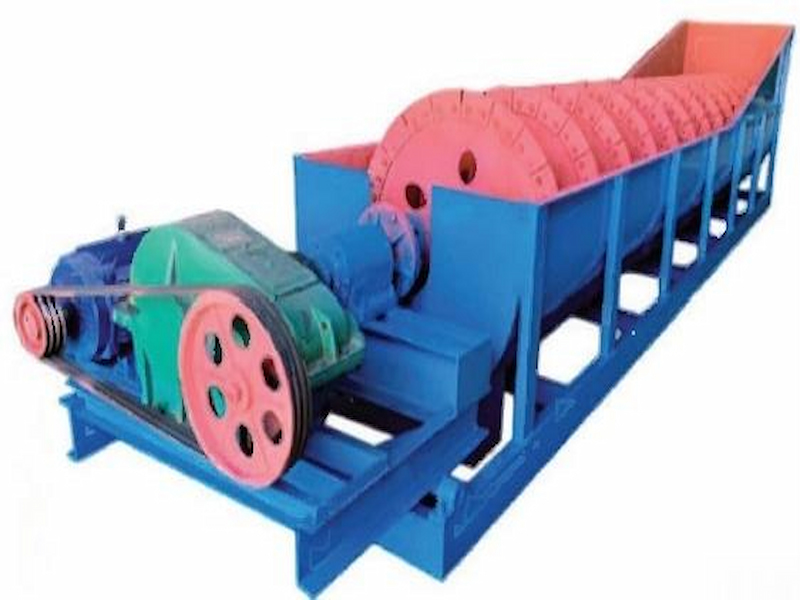

Spiral Sand Washer Manufacturer | Fine Material Recovery 200TPH | CATHAY learn more

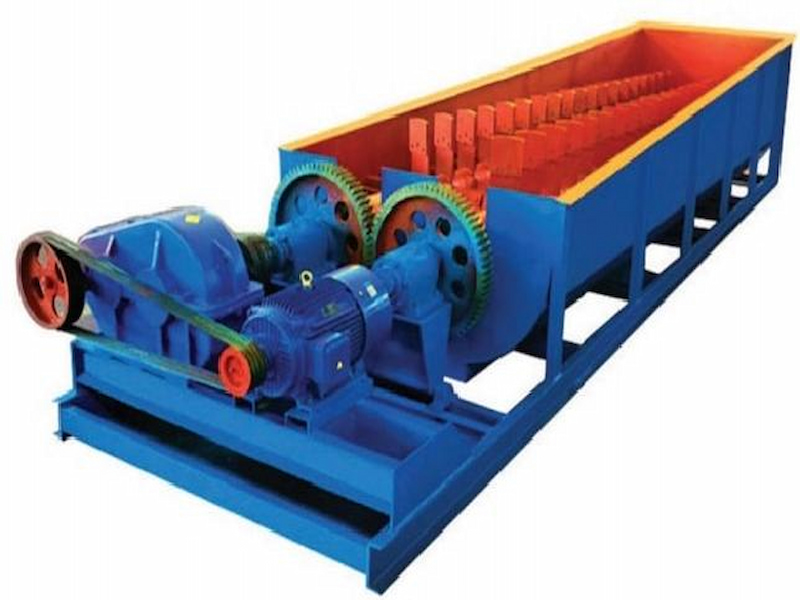

CATHAY Trough Ore Washer | Double-axis Powerful Scrubbing Mud and Stone Separation Rate 98% Special for Iron Ore/Manganese Ore learn more

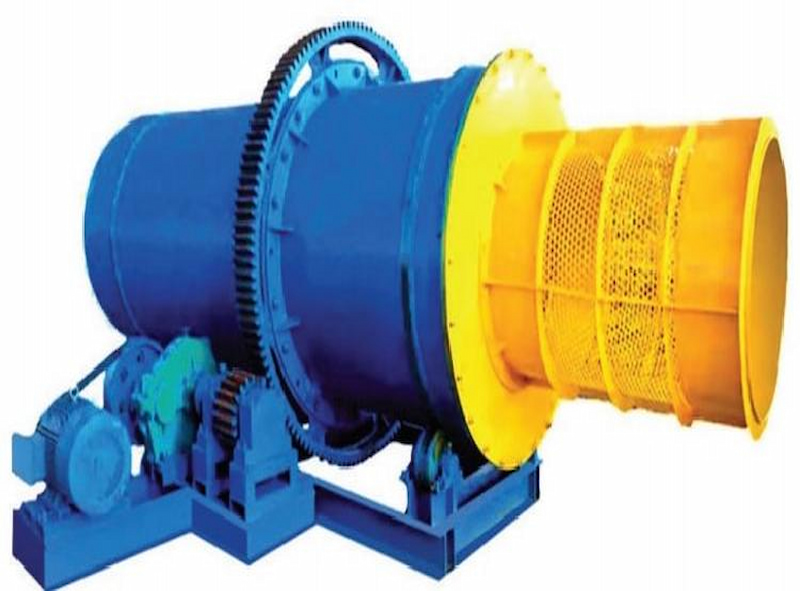

CATHAY drum ore washer | Powerful scrubbing + screening in one, processing high mud ore 200t/h learn more
