CATHAY Horizontal Vibrating Screen | Mining/Chemical Industry Specialized High Efficiency and Precision Screening

Horizontal screen is a vibration screen developed based on the new vibration screening mechanism and drawing on advanced international vibration exciter design concepts,which has international level.
The advantages of large screening processing capacity,high screening efficiency,stable and reliable operation, non clogging,low installation height,smooth movement,long service life of vulnerable parts,and convenient maintenance and repair are suitable for large-scale screening of materials and various dry and wet occasions. Used for screening treatment at the sand making building station;Widely used for product grading in fields such as mining,building materials,coal chemical industry,and cement.
product introduction
CATHAY horizontal vibrating screen adopts the principle of low-angle horizontal vibration (0-5° inclination) and is a professional screening equipment designed for fine classification and difficult-to-screen materials. It is suitable for high-demand industries such as chemical, food, and medicine, with a processing capacity of 0.5-50t/h and a screening accuracy of up to 0.038mm (400 mesh), achieving nearly horizontal and efficient material flow.
Core advantages
1. Precision screening technology
- Micro-horizontal vibration: amplitude 1-3mm, to avoid material crushing (especially suitable for crystal/brittle materials)
- Multi-layer fine grading: 1-5 layers of screen configuration, while producing 4-6 specifications of finished products
- Zero clogging design: bouncing ball/ultrasonic screen cleaning system optional
2. Sanitary structural design
- Optional materials: 304/316L stainless steel (Ra≤0.8μm mirror polishing)
- No dead angle structure: arc transition + quick-open clamp (cleaning time <15 minutes**)
- GMP compliance: FDA/CE certified (special model for medicine and food)
3. Intelligent control system
- Frequency conversion adjustment: vibration frequency 500-3000 times/minute stepless speed change
- Internet of Things module: real-time monitoring of screen damage, output and energy consumption
- One-click production change: store 20 sets of process parameters
4. Industry customized solutions
- Chemical grade: explosion-proof motor + gas seal (for handling flammable and explosive powders)
- Medical grade: all stainless steel + IP65 protection (for sterile environments)
- Mining version: thickened wear-resistant screen plate (lifespan **≥12 months**)
Technical parameters
| Parameters | Standard specifications | Customization range |
| Screen surface size | 800×2500mm | 400×1200mm~2000×6000mm |
| Screening accuracy | 0.074-10mm | 0.038-25mm |
| Processing capacity | 0.5-20t/h (single layer) | Up to 50t/h |
| Power | 0.75-7.5kW | Explosion-proof motor optional |
| Noise | ≤70dB | Silent type ≤65dB |
Typical applications:
✔ Mining and metallurgy:
- Quartz sand 30-100 mesh particle size control
- Metal powder anti-oxidation screening (nitrogen protection option)
Service support
- Verification test machine: provide 20kg material free test screening
- Fast delivery: standard model shipped within 7 days
Global certification: CE, FDA, ATEX (explosion-proof)
Table parameters
转速(r/min) Speed
筛面规格(mm) Screen size
给料尺寸(mm) Feed size
处理量(t/h) Capacity
运动轨迹 Trajectory
淋水除尘管 橡胶弹簧 基础机架 金属编织筛网 底部张紧的底层筛 楔型夹装置 粗筛配置 防堵球筛层
Horizontal vibrating screen
Previous Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Next Square Swing Screen Manufacturer - Precision Screening Solutions | CATHAY
Square Swing Screen Manufacturer - Precision Screening Solutions | CATHAY
Subject : CATHAY Horizontal Vibrating Screen | Mining/Chemical Industry Specialized High Efficiency and Precision Screening
Mining feeder equipment
Vibrating screen
Ore dressing machine
Mining handling equipment

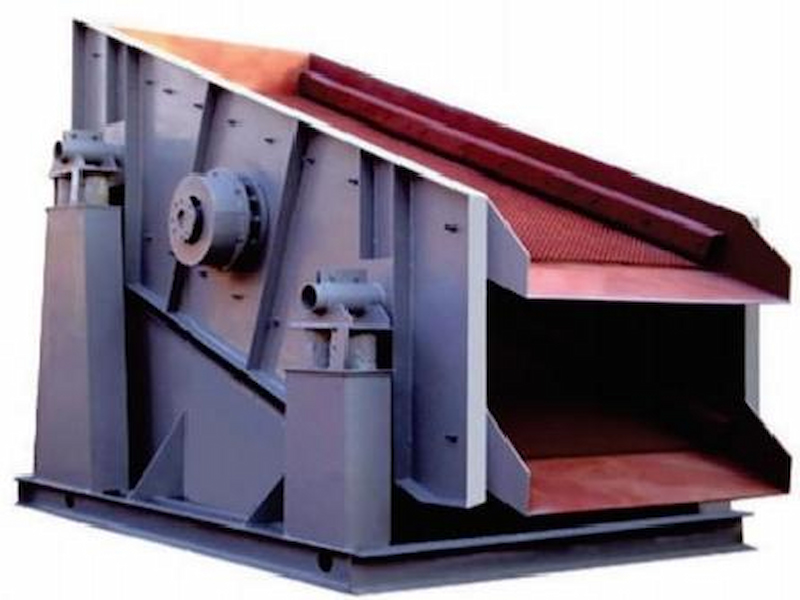

Vibrating Screen Manufacturer | Mining & Aggregate Screening Solutions - CATHAY learn more

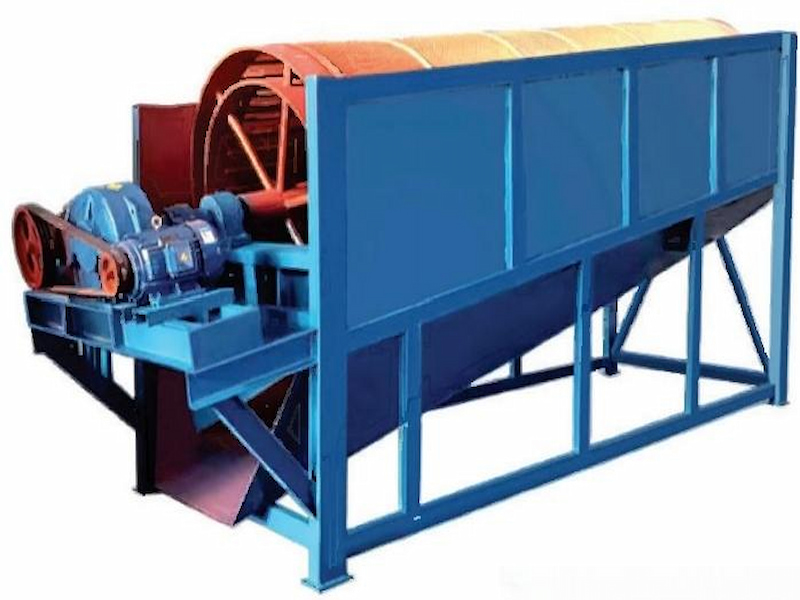

CATHAY Drum Screen | Professional Ore/Sand Gravel Grading and Screening Equipment learn more

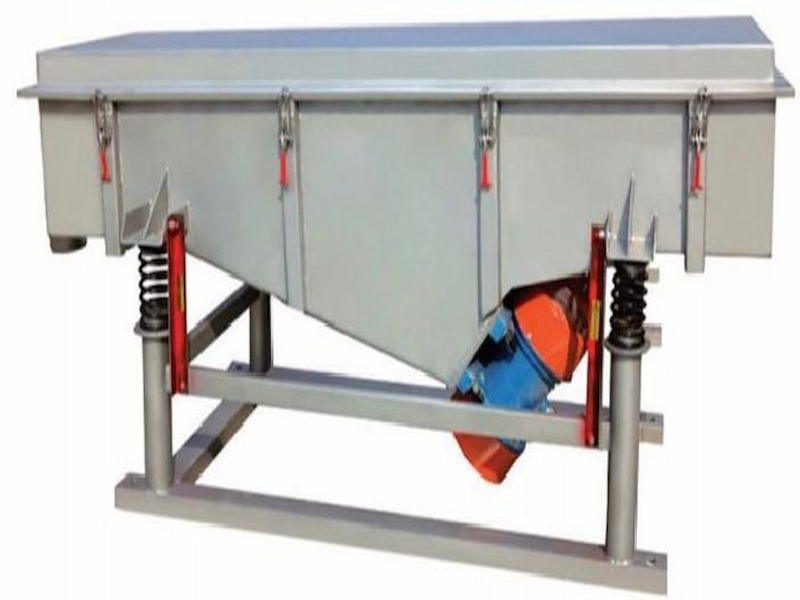

Linear Vibrating Screen Manufacturer - Mining & Aggregate Screening | CATHAY learn more
CATHAY Horizontal Vibrating Screen | Mining/Chemical Industry Specialized High Efficiency and Precision Screening learn more

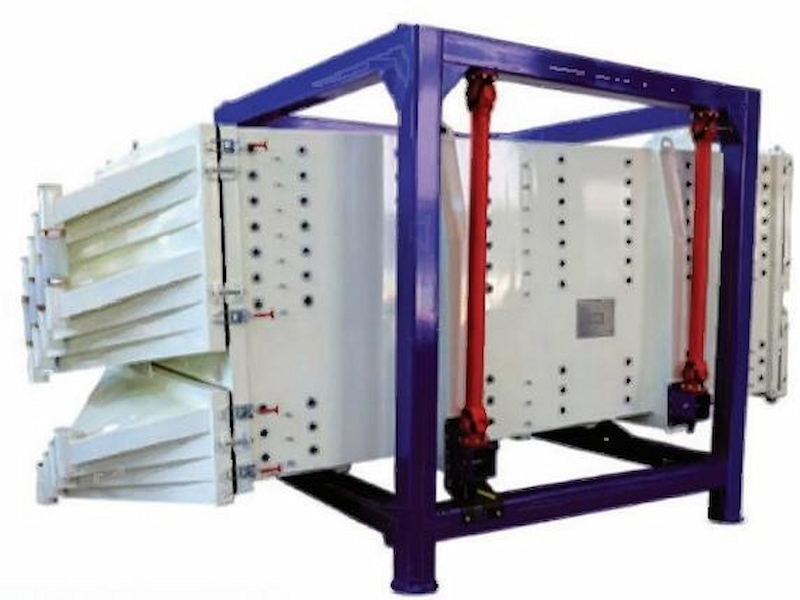

Square Swing Screen Manufacturer - Precision Screening Solutions | CATHAY learn more

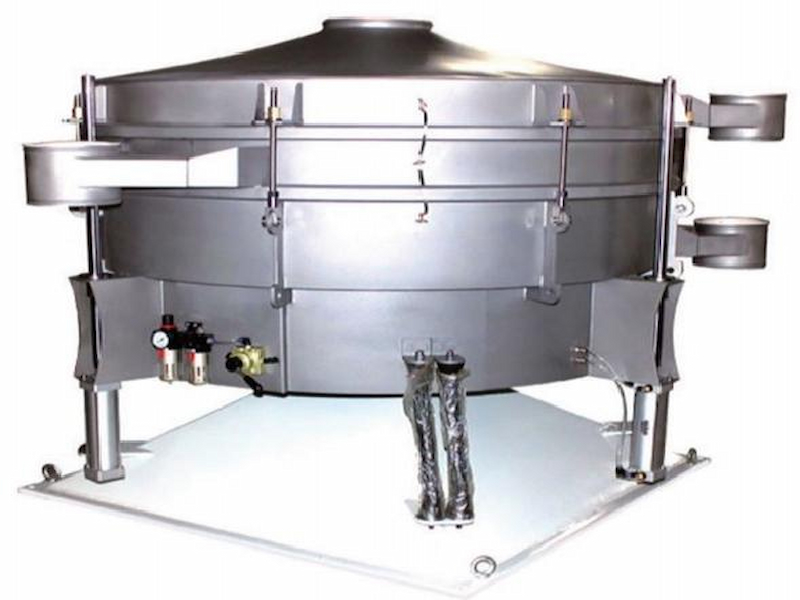

Circular Vibrating Sifter - Fine Powder Classification Equipment learn more
