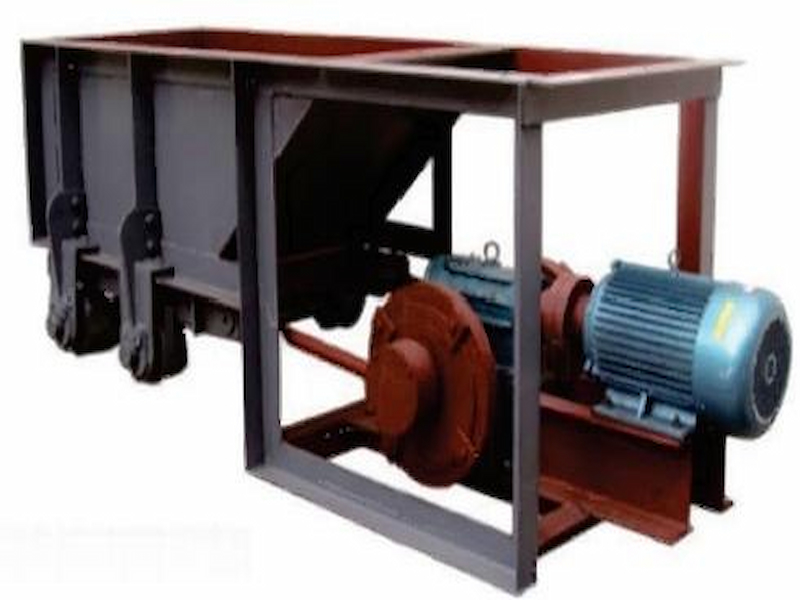

CATHAY Chain Feeder - Heavy-duty Material Conveying Expert Wear-resistant and durable Stable and reliable

Chain feeder can be used to deliver various bulk or loose materials from storage bin to crusher,conveyor or other working machinery in a horizontal or inclined direction.There are light,medium and heavy types.It is widely used in mines,metallurgy,cement and other industries.It is an indispensable equipment in raw material treatment or continuous production process,especially suitable for large and sharpmaterials.
Product highlights:
✔ Super strong load-bearing capacity, suitable for bulk materials
✔ Wear-resistant chain plate, doubled service life
✔ Stable feeding, no spillage and leakage
✔ Simple maintenance, low operating cost
product introduction
CATHAY chain feeder is a high-performance equipment designed for heavy material conveying. It uses high-strength alloy chain plates and heavy-duty roller chain transmission systems to stably convey large, high-temperature, and sharp materials. The maximum conveying capacity is 3000t/h, which is an ideal choice for mining, metallurgy, cement and other industries.
Core advantages
1. Super strong load-bearing capacity
- Heavy-duty chain plate: 16Mn alloy steel plate, thickness of 15-30mm, single plate load-bearing 2-5 tons
- Reinforced chain: Ø50-120mm large pitch roller chain, breaking force ≥800kN
- Heavy-duty design: The trough body adopts 20mm thick Q345 steel plate, and the overall rigidity is increased by 40%
2. Excellent wear resistance
- Triple protection: The surface of the chain plate can be treated with wear-resistant welding layer/ceramic patch/high chromium alloy**
- Long life: The life of key components is 3-5 years (2-3 times that of ordinary equipment)
- Easy to replace: modular chain plate design, single block replacement only takes 15 minutes
3. Stable and reliable operation
- Accurate speed regulation: hydraulic motor/frequency conversion motor is used, speed adjustment range is 0.01-0.3m/s
- Intelligent monitoring: equipped with chain tension monitoring and overload protection system
- Low maintenance: automatic lubrication system, maintenance interval ≥500 hours
4. Adaptation to special working conditions
- High temperature resistance: can convey hot materials ≤800℃ (with water cooling system)
- Anti-impact: buffer rollers are set at the bottom to resist the impact of falling materials
- Anti-deviation: patented guide device, offset ≤5mm
Technical parameters
| Parameter item | Specification range |
| Chain plate width | 800-2400mm |
| Conveying capacity | 100-3000t/h |
| Applicable particle size | ≤1500mm |
| Chain speed range | 0.01-0.3m/s |
| Motor power | 7.5-315kW |
| Tilt angle | 0-25° |
Industry solutions
✔ Metal mines: primary feeding of large ore (recommended plate width ≥1600mm)
✔ Steel plant: high-temperature material transportation of sintered ore and pelletized ore
✔ Cement industry: limestone, clinker and other abrasive material processing
✔ Coal industry: raw coal transportation (explosion-proof model optional)
Service support
- Customized design: provide anti-sticking/anti-corrosion/explosion-proof solutions according to material characteristics
- Fast delivery: conventional models are delivered within 15 days, and spare parts are shipped within 24 hours
Lifetime service: provide equipment health monitoring and preventive maintenance** services
Table parameters
槽板宽度(mm) Slot width
头尾轮轴中心距(mm) Center distance
给料粒度(mm) Feed particle size
Feed particle size
处理能力(t/h) Capacity
Previous Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Next Vibrating Screen Manufacturer | Mining & Aggregate Screening Solutions - CATHAY
Vibrating Screen Manufacturer | Mining & Aggregate Screening Solutions - CATHAY
Subject : CATHAY Chain Feeder - Heavy-duty Material Conveying Expert Wear-resistant and durable Stable and reliable
Mining feeder equipment
Vibrating screen
Ore dressing machine
Mining handling equipment
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions" learn more

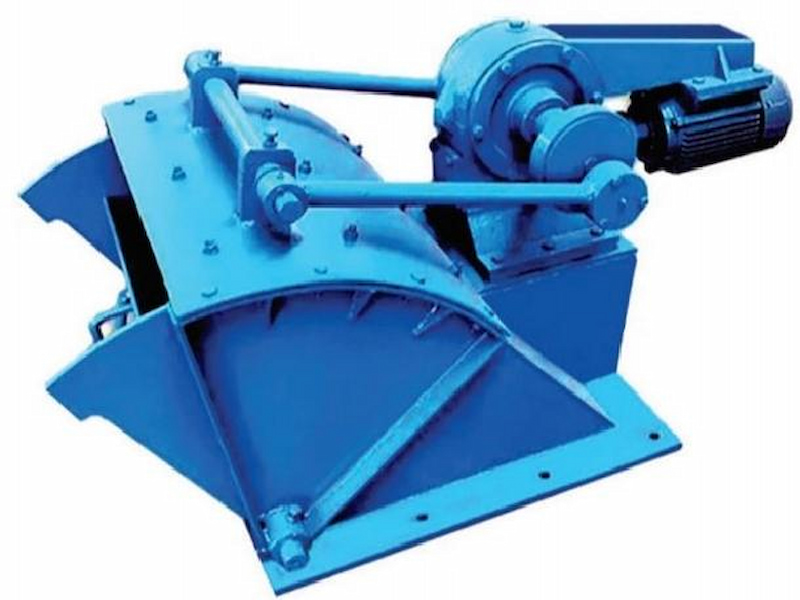

CATHAY Pendulum Feeder – Reliable Ore Feeding for Mining learn more

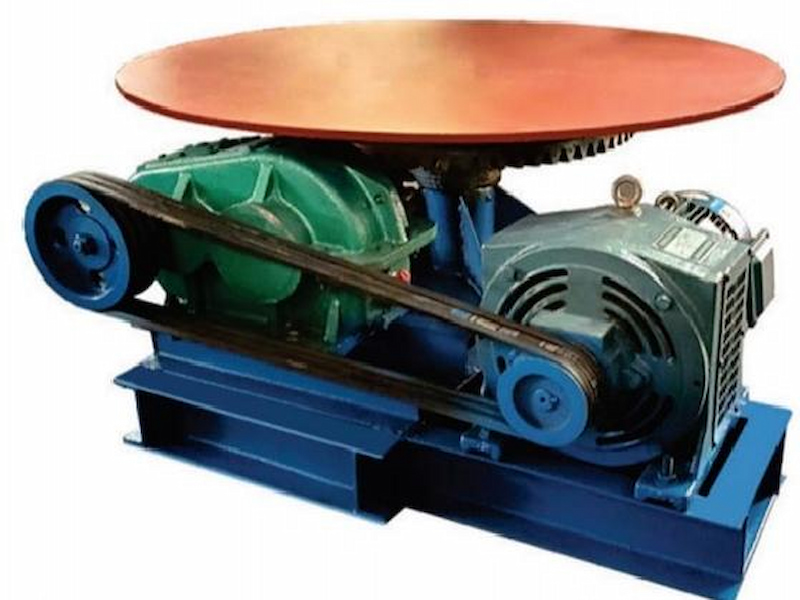

CATHAY disc feeder | wear-resistant and durable, precise quantitative feeding learn more
CATHAY vibrating feeder - efficient and stable mining material transportation expert learn more

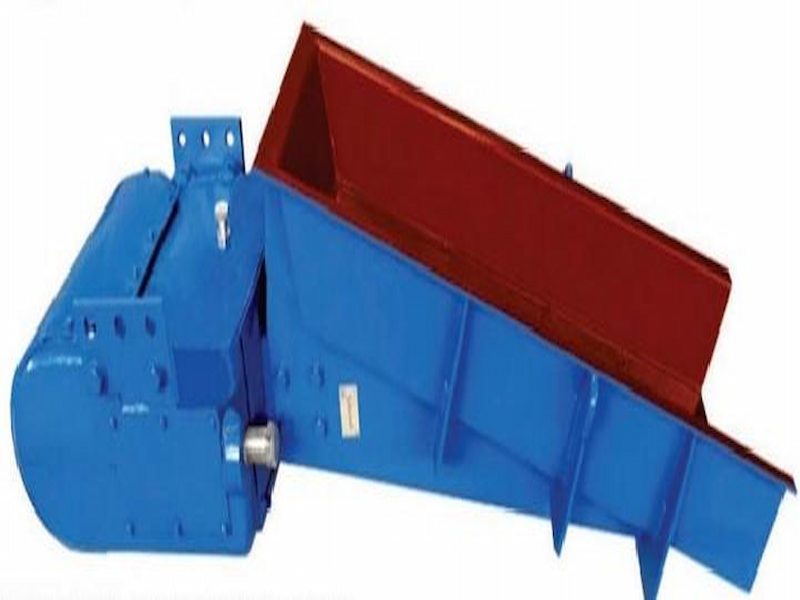

CATHAY electromagnetic vibrating feeder - intelligent, precise, efficient and energy-saving material conveying solution learn more

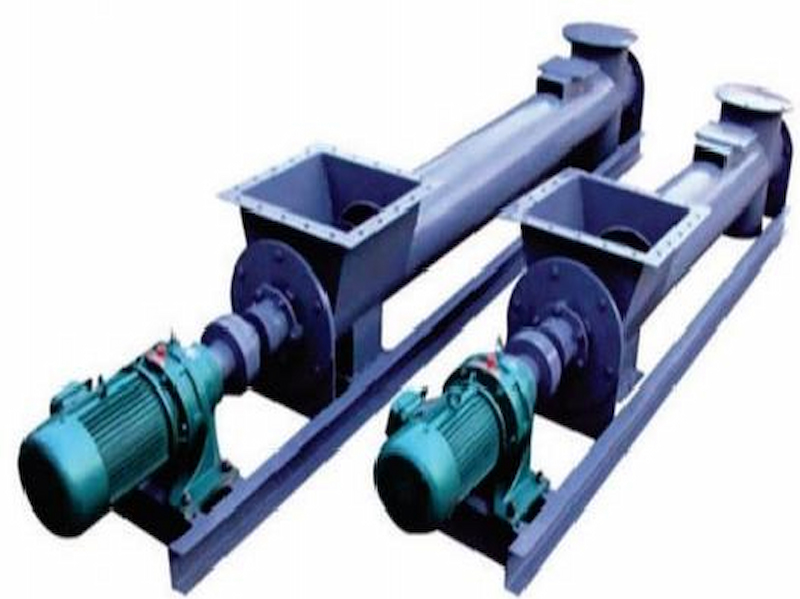

CATHAY Screw Feeder | Professional conveying equipment for powder/granular materials learn more
