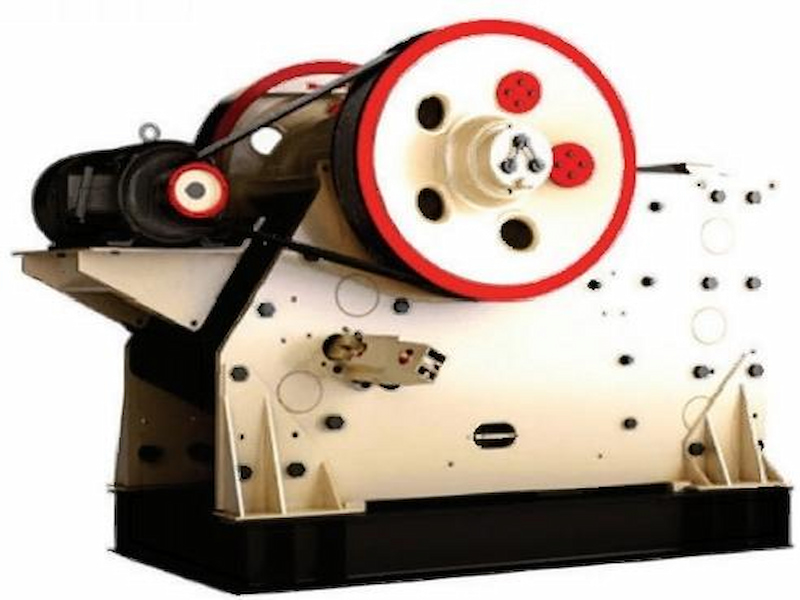

CATHAY jaw crusher | Granite/basalt coarse crushing expert Feed ≤1200mm

Jaw crusher is commonly known as jaw breaker,also known as slot mouth.A crusher which simulates the movement of animal's jaws and completes material crushing operation is composed of two jaw plates, dynamic and static.It is widely used in the crushing of various ores and bulk materials in mining,building materials,highways,railways,water conservancy and chemical industries.
product introduction
CATHAY jaw crusher product details
CATHAY brand jaw crusher has two series: PE and PEX. The PE series is specially designed for the coarse crushing of various ores and rocks, while the PEX series excels in the field of medium and fine crushing. A variety of model settings can perfectly adapt to the large-scale production of large enterprises and the flexible needs of small and medium-sized enterprises.
Product features
High efficiency and high yield: outstanding production efficiency, amazing crushing ratio, uniform product particle size, low energy consumption, slight noise during operation, and very little dust pollution.
Flexible adjustment: The innovative gasket-type discharge port adjustment device is reliable and easy to operate, with a wide adjustment range, which greatly improves the adaptability of the equipment under different working conditions.
Durable and wear-resistant: The key jaw plate is made of high-strength manganese steel and is cast by a one-time casting process. It has super wear resistance and pressure resistance, and its service life is greatly extended.
Stable and low consumption: The overall structure is simple and clear, the operation is stable and reliable, and the operating cost is low. The lubrication system is safe and worry-free, and the parts are easy and convenient to replace.
Working Principle
The motor is used as the power source, and the belt drive drives the eccentric shaft to rotate at high speed, prompting the movable jaw to reciprocate according to the precise predetermined trajectory. After the material enters the crushing chamber constructed by the fixed jaw plate, the movable jaw plate and the side guard plate, it is subjected to multiple forces such as continuous extrusion, splitting and bending and gradually crushed. The finished crushed material is discharged smoothly through the lower discharge port. The continuous rotation of the motor drives the movable jaw of the crusher to perform crushing and discharging actions repeatedly, realizing efficient batch production operations.
Applicable materials and industries
Applicable to various materials such as rocks, ores, limestone, dolomite, coal gangue, magnesite, silica, etc. It is widely used in many industries such as mining, smelting, construction, highways, railways, water conservancy and chemical industries.
CATHAY has always focused on the field of mining machinery. With its deep technical accumulation, strict quality control and accurate grasp of customer needs, it has established an excellent reputation in the industry. Choosing CATHAY jaw crusher means choosing an efficient, stable and reliable crushing solution.
Table parameters
进料粒度(mm) Maximum feed
出料口范围(mm) Outlet adjustment
产量(t/h) Throughput
电机功率(kw) Motor power
外形尺寸(mm) Shape size
Previous Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Next CATHAY European version jaw crusher High efficiency crushing equipment Mining and smelting optimization
CATHAY European version jaw crusher High efficiency crushing equipment Mining and smelting optimization
Subject : CATHAY jaw crusher | Granite/basalt coarse crushing expert Feed ≤1200mm
Mining feeder equipment
Vibrating screen
Ore dressing machine
Mining handling equipment
CATHAY jaw crusher | Granite/basalt coarse crushing expert Feed ≤1200mm learn more
CATHAY European version jaw crusher High efficiency crushing equipment Mining and smelting optimization learn more

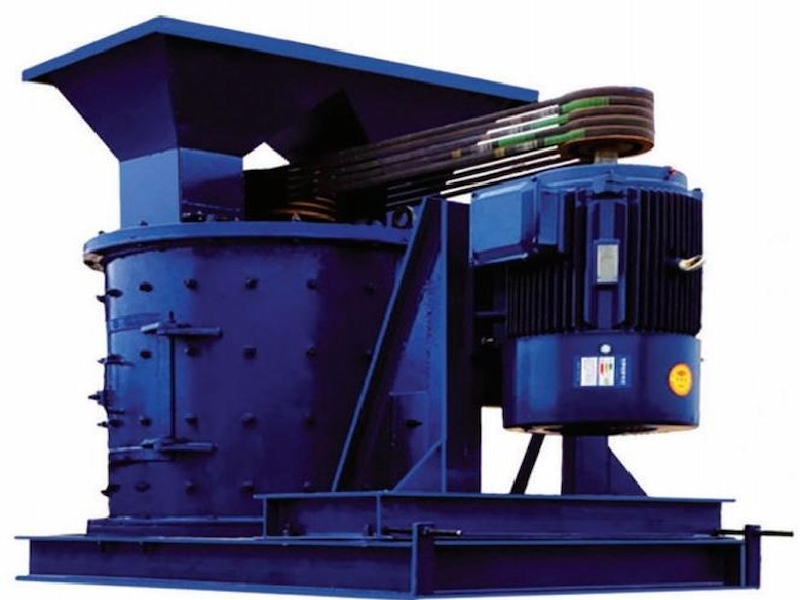

CATHAY vertical crusher, high efficiency, small footprint and high efficiency learn more
CATHAY Hammer Crusher High efficiency crushing One-click handling of various materials learn more

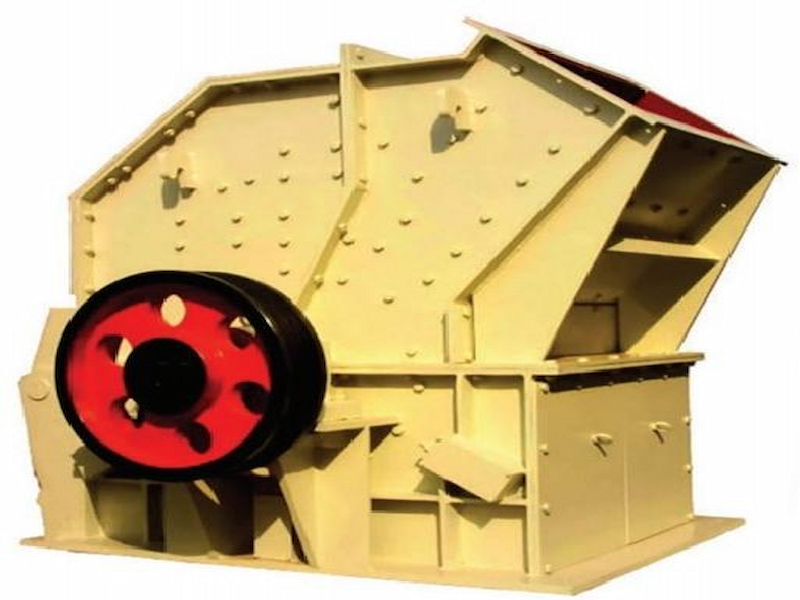

High-efficiency impact crusher CATHAY equipment is suitable for various materials learn more

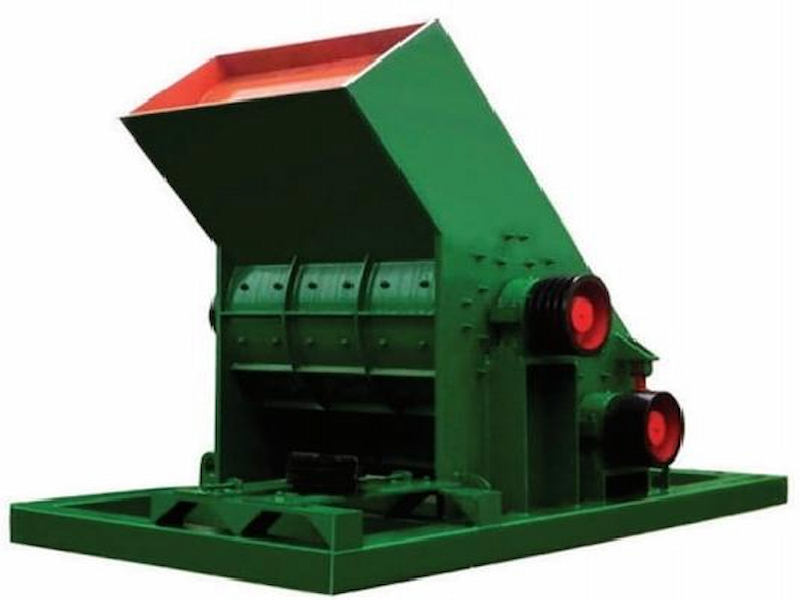

CATHAY double-stage crusher double-chamber crushing efficient processing of wet material lumps learn more
